Cray SV1-1
|
|
This is a Cray supercomputer built probably in 2004. It came from the MOD as surplus in Jan 2010. It came with no disks, but complete with the Sun Sparc 5 front console machine. Note that its missing the left hand rack (see below).
It has two procesor cards, each with 4 processors and 8 memory cards (possibly 256Gb). Each processor has a peak rate of 1.2 to 4.8Gflops thus the machine is 9.6Gflops to 38.4Gflops, the highst in the collection as of jan 2010.
Here are some specifications of the machine (its a Cray SV1-1) from here.
| Model | Tera/Cray SV1-A | Tera/Cray SV1-1 | SV1 Supercluster |
|---|---|---|---|
| Clock cycle | 3.33 ns | 3.33 ns | 3.33 ns |
| Theor. peak performance | |||
| Per Proc. (64 bits) | 1.2/4.8 Gflop/s | 1.2/4.8 Gflop/s | 1.2/4.8 Gflop/s |
| Maximal | |||
| Single frame: | 19.2 Gflop/s | 38.4 Gflop/s | --- |
| Multi frame: | --- | --- | 1.2 Tflop/s |
| Memory bandwidth | |||
| Memory-Cache | 7.7 GB/s | 7.7 GB/s | 7.7 GB/s |
| Cache-CPU | 9.6 GB/s | 9.6 GB/s | 9.6 GB/s |
| Aggregate | 30.7 GB/s | 61.4 GB/s | --- GB/s |
| Node--node (bi-direct.) | --- GB/s | --- GB/s | 1 GB/s |
| Main memory | <= 16 GB | <= 32 GB | <= 1 TB |
| No. of processors | 8--16 | 8--32 | <= 1024 |
Machine s/n 3227 components:
processor rack.
 |
 |
|

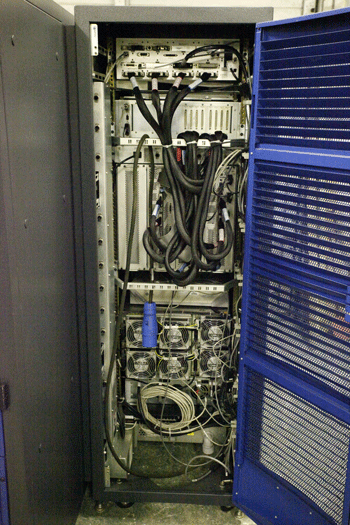

| Left hand rear system rack | Right hand rear rack showing main CPU rack | Main console |
System rack above:
Moving the machine:
 |
 |
